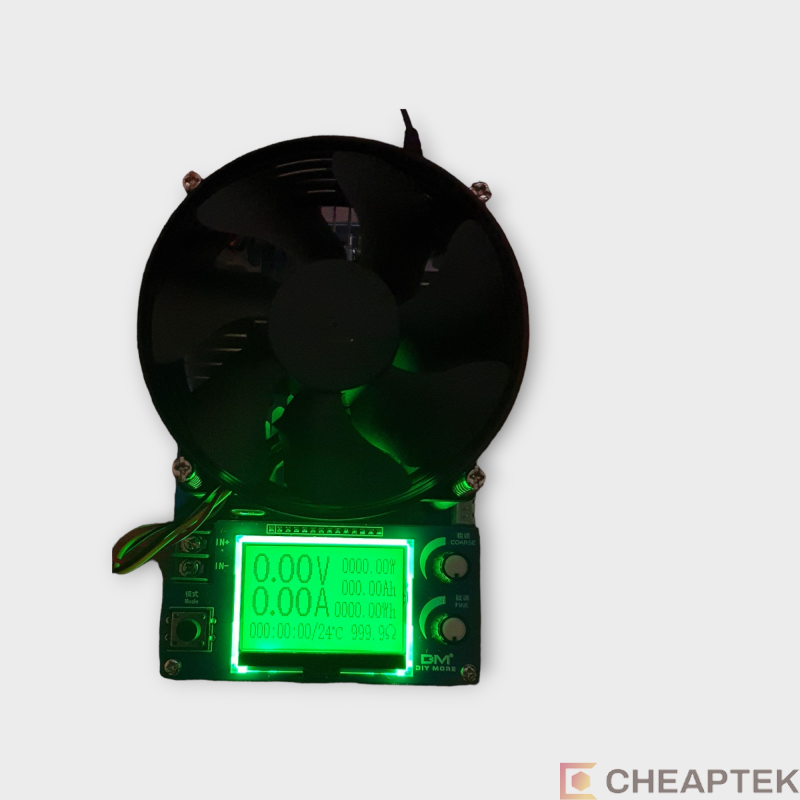

Electronically Adjustable DC Load 150W 150V 10A

The electronically adjustable DC load is an ideal tool for testing battery capacity and power supply stability. This tester provides precise measurements of voltage, current, capacity, power, impedance, and temperature. The backlit LCD display allows you to easily monitor all key parameters in real time. The load includes multiple protective functions such as over-limit alarms and automatic discharge stops for overvoltage, overcurrent, or overpower situations. It is equipped with various interfaces for different USB connections and high-flow terminals.

Specifications:

• Power Voltage: DC 6~12V
• Interface: DC5.0
• Voltage Measure Range: 0~150V, Accuracy 0.05V
• Current Adjustable Range: 0~10A, Accuracy 0.05A
• Capacity Range: 0~999.999Ah, Accuracy 0.001Ah
• Cumulative Range: 0~99999.9Wh, Accuracy 0.01Wh
• Measure Range: 0~2999.9W, Accuracy 0.01W
• Impedance Range: 0~999.9Ω, Accuracy 0.01Ω
• Temperature Range: 0~99°C, Accuracy 1°C
• Max Timing: 999:59:59, Accuracy 1s
• Fan Cooling Power: <150W
• Fan Control Threshold: Temp >40°C
• Standby Reminder Threshold: <2W/0.5h
• Timing Function: >0.5W start timing
• Input Interface: 20A high current terminal, Type A USB, Mini USB, Micro USB, Type-C USB
• Refresh Time: >500ms/time
• Measurement Rate: 0.5time/s
• Over Limit Alarm: Interface warning and buzzer alarm
• Voltage Overrun Auto-Stops Discharge Range: 0~150V
• Current Overrun Auto-Stops Discharge Range: 0~10A
• Power Overrun Auto-Stops Discharge Range: 0~150W
• Display Screen: LCM display
• Size: 149×96×80mm (Package: 195×105×135mm)
• Weight: 370g (net weight), 570g (package)
• Consumption: <1.5A
• Operating Temp: -10~60°C
• Operating Humidity: 10~80% (No condensation)
